Discussion Starter · #1 ·
Howdy folks :). Well the build is 'on' - the project is a 'go'. Here's some pics of the 78 RC 'Macho Nacho' build that I just started -

There are several major modifications I made to this 1978 Ramcharger. Factory stock it came with a 400/727/203 combo and save for a 3" body lift was essentially bone stock. The truck went through three stages:

Stage I was simply getting it reliably running, driving, and registered.

Stage II was the first 3 years of it's metamorphosis: 1-ton running gear conversion with the gas engine, and the air bag suspension, the fully custom interior, and the body and paint work.

Stage III, its current and likely final stage, was a 7-month upgrade to a Cummins 6BT engine and driveline, a swap back to leaf springs, and adding the 203/205 doubler transfer case.

This has turned into a 4-year plus project, and to my surprise and delight it grew into a huge thread with a tremendous amount of great discussions and pictures from a huge line-up of great folks. I went through and made a list of the major milestones throughout the build and have them listed here by page, along with the links.

Pg 1: Teardown, rotisserie, media blasting, paint booth tech, 452 big block
Pg 2: Safari rack, rust repair, crane, air bag decision (inflated pg 11, x4 pg 14) http://ramchargercentral.com/index.php?topic=49434.50
Pg 3: Exhaust, TSM rear disc brakes, rear bumper/hitch http://ramchargercentral.com/index.php?topic=49434.100
Pg 4: EFI plumbing, rear body fab and storage boxes, soft top, rocker sliders, seats http://ramchargercentral.com/index.php?topic=49434.150
Pg 5: Spare tire rack (Jet Pak), 1/4 doors, front bumper http://ramchargercentral.com/index.php?topic=49434.200
Pg 6: Tilt front clip http://ramchargercentral.com/index.php?topic=49434.250
Pg 7-8: Dash fab and initial wiring, console, shifter http://ramchargercentral.com/index.php?topic=49434.300
Pg 9: Subframe, front oil coolers http://ramchargercentral.com/index.php?topic=49434.400
Pg 10: Front 4-link fab http://ramchargercentral.com/index.php?topic=49434.450
Pg 11: Rear 3-link fab, high-steer conversion, shocks, ram-assist, EFI http://ramchargercentral.com/index.php?topic=49434.500
Pg 12: Air tank, CB mount http://ramchargercentral.com/index.php?topic=49434.550
Pg 13: Electrical sub-station http://ramchargercentral.com/index.php?topic=49434.600
Pg 14-15-16: Body work, dash wiring installed, heater box restoration http://ramchargercentral.com/index.php?topic=49434.650
Pg 17-18: Paint 8) http://ramchargercentral.com/index.php?topic=49434.800
Pg 19: Paint supplies, LINE-X http://ramchargercentral.com/index.php?topic=49434.900
Pg 20: Steering mount reinforcement http://ramchargercentral.com/index.php?topic=49434.950
Pg 21-22: Engine mods and accessories http://ramchargercentral.com/index.php?topic=49434.1000
Pg 23: Dash wiring harness http://ramchargercentral.com/index.php?topic=49434.1100
Pg 24-25: 452 big block - engine start! {cool} http://ramchargercentral.com/index.php?topic=49434.1150
Pg 26: 1st drive! http://ramchargercentral.com/index.php?topic=49434.1250
Pg 27: 1st trip - Moab 07 8) http://ramchargercentral.com/index.php?topic=49434.1300
Pg 28-30: ...misc discussions... http://ramchargercentral.com/index.php?topic=49434.1350
Pg 31: ...discussion about gears... http://ramchargercentral.com/index.php?topic=49434.1500
Pg 32: ...discussion about tires... http://ramchargercentral.com/index.php?topic=49434.1550
Pg 33: * Upgrade to Cummins Turbo Diesel * http://ramchargercentral.com/index.php?topic=49434.1600
Pg 34: Leaf springs, donor truck, ORD doubler voodoo http://ramchargercentral.com/index.php?topic=49434.1650
Pg 35: RC back apart, doubler voodoo, leaf spring voodoo http://ramchargercentral.com/index.php?topic=49434.1700
Pg 36: ORD doubler {cool} http://ramchargercentral.com/index.php?topic=49434.1750
Pg 37: 6BT blasting, 203 voodoo, driveline assembly http://ramchargercentral.com/index.php?topic=49434.1800
Pg 38: Cummins electrical voodoo http://ramchargercentral.com/index.php?topic=49434.1850
Pg 39: Intercooler, cradle, 6BT downpipe http://ramchargercentral.com/index.php?topic=49434.1900
Pg 40: 6BT start!, batteries/charging issues http://ramchargercentral.com/index.php?topic=49434.1950
Pg 41: 6BT thermostat voodoo http://ramchargercentral.com/index.php?topic=49434.2000
Pg 42: 1st drive with diesel!, video, Mickey Thompson MTZ tires {cool} http://ramchargercentral.com/index.php?topic=49434.2050
Pg 43: Moab 08! {cool} http://ramchargercentral.com/index.php?topic=49434.2100
Pg 50: Decision to sell body/interior, http://ramchargercentral.com/index.php/topic,49434.2400.html

***********************************************************
EDIT: Sept 1, 2007 - Project Success. Truck is on the road. 2 yrs, 8 months build time.
***********************************************************
EDIT #2: Mar, 2008 - Project apart again. Suspension and weight issues drove decision to repower with Cummins 6BT diesel and remove air bags in lieu of leaf springs.
*************************************
EDIT #3: Sep 14, 2008 - 6BT Repower and suspension swap complete, truck is driving again. Conquered Moab again - three full days 8)
*************************************
EDIT #4: Aug 12, 2009 - Realized I had built the truck to fancy, too much of a 'show' truck. Found a good home for the body/interior (to an RCC member in Texas). Gonna build a bigger badder beat-able bruiser!

* Original thread *

Got it pretty much torn apart and ready to go to blasting. Here's a few initial pics - I'll try to post a few here and there as the project goes...
Eventually it's going to be painted a verson of dark red with the black hood and base and yellow stripe, very similar to the Macho package with a couple subtle changes as I wanted it to look.

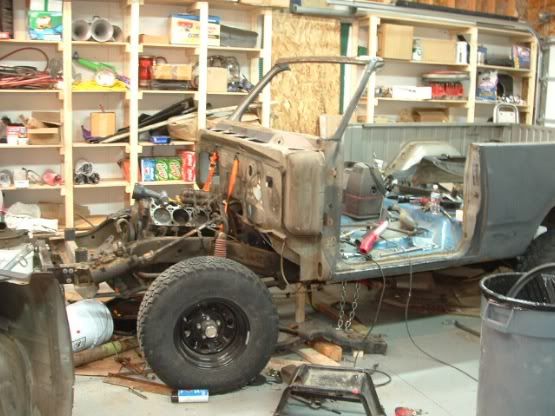

...here is a pic of the ole beater all torn apart.
- Sam






·
Premium Member
Joined
·
6,362 Posts
this is the perfect place to post em...sooo dooo it! lol read the site FAQ's to figure out how to post pics. i believe thats where it tells you how


·
Registered
Joined
·
9,475 Posts
Red X...


·
Moderator
Joined
·
2,317 Posts
unless its a small white box with a red X,nothing.lol


·
Moderator
Joined
·
3,940 Posts
i don't believe you link directly form TDR. you may have to host them elsewhere, then link them here.


·
Premium Member
Joined
·
13,640 Posts
Discussion Starter · #6 ·
Okay - I think I got this pic posting thing figured out - please someone tell me they can see these pics now ::)

Fertilizer blasting = Good! Used Potassium Nitrate, results are incredible. 3 month's-worth of scraping and dirty work erased in 7 hours, all for $875 - best money I've spent in a while...
Now the rust repairs and panel replacements can commence, body work, and paint - no mess to fight with, no grease to remove, just bare metal and the garage stays clean. Plus I can drop the engine/tranny/driveline directly on the chassis without maneuvering around the body - sweet deal.
- The tub -

- Under floor -

- Front clip -

- Pro vavle and frame -

- The topper too -

The topper was completely blasted but the pic shows the seams only - the orange paint came off so well I asked him to just do the whole thing...
- S


·
Moderator
Joined
·
5,681 Posts
SamsRams said:
Hmm, sometimes it shows the pics and sometimes it's the X - I logged off and back on and the pics showed up....uhh, ok :p
...hey, I have a digital camera - that's about as high-tech as I get... ;D
- S
Try using www.cardomain.com to post your pictures on and link them here :)


·
Premium Member
Joined
·
2,209 Posts
photobucket,yahoo there also good for linking pics


·
Premium Member
Joined
·
13,640 Posts
Discussion Starter · #9 ·
too weird - I can see the pics - can anyone else?


·
Registered
Joined
·
785 Posts
Hey Sam. It's Idually from over at the TDR. I haven't posted here for a very long time, but I noticed your post.
I think the problem with the pics has to do with linking to te TDR site. I cut the address(right click on the red "X", go to properties, highlight the address, cut it, paste it in address bar) and got the login to screen to the TDR. That might have something to with why others can't see them and you can. Try logging off of the TDR site and come back over here. See if you can see them then. Let me know if I can help. I might be able to "host" them for you. ;D

Andrew

P.S. Check you PM's. I sent one over to you.


·
Premium Member
Joined
·
13,640 Posts
Discussion Starter · #11 ·
okay - I think I got the links working. Please someone tell me they can see these now... ::)
Thanks for y'alls patience with my low-tech butt...


·
Registered
Joined
·
165 Posts
Sam you didnt need to put any supports in your door frames when you put it on the rotisory. I did on mine i was afraid it would fold up with out the doors on it, but looking at yours i guess you dont have to.


·
Premium Member
Joined
·
13,640 Posts
Discussion Starter · #15 ·
..yeah I wasn't sure if it'd fold-up and collapse on me, but the strap was quick cheap insurance. I also tied the legs of the rotisserie base together to make a solid 'loop'. The jig is very overkill, but that let's me feel better when I'm inder the thing ;)
The nice thing about doing it frame-off is I can do all the chassis work without working around/under/over the tub. I'm also doing a full roll cage and a tilt front clip - no better way to change spark plugs or do maintenance that with the front clip completely out of the way ;D
- S


·
Moderator
Joined
·
5,681 Posts
Well your doing it right! And doing a damn good job. Keep us posted i looking foward to seeing this bad boy down the road :)


·
Registered
Joined
·
2,522 Posts
Oh ya Sam knows his stuff and does everything the right way. I think I've seen that truck thats towing stuff before to!! ;D I kind of hated to sell that truck but I'm sure glad yall are using it :)

Jimbo


·
Premium Member
Joined
·
13,640 Posts
Discussion Starter · #18 ·
Hey Jimbo! I wondered if you might catch a glimpse of the designated tow vehicle of the day...my diesel was towing the chassis...


·
Registered
Joined
·
12,472 Posts
very cool man .....have u seen Mopar4x's build up ? i hope yours turns out just as nice man ...Joe Cool did a hell of a rest too
